Current Position：Home ProductsElectric Vehicles

EV Cell
EV Module
EV Pack
Start-Stop Battery

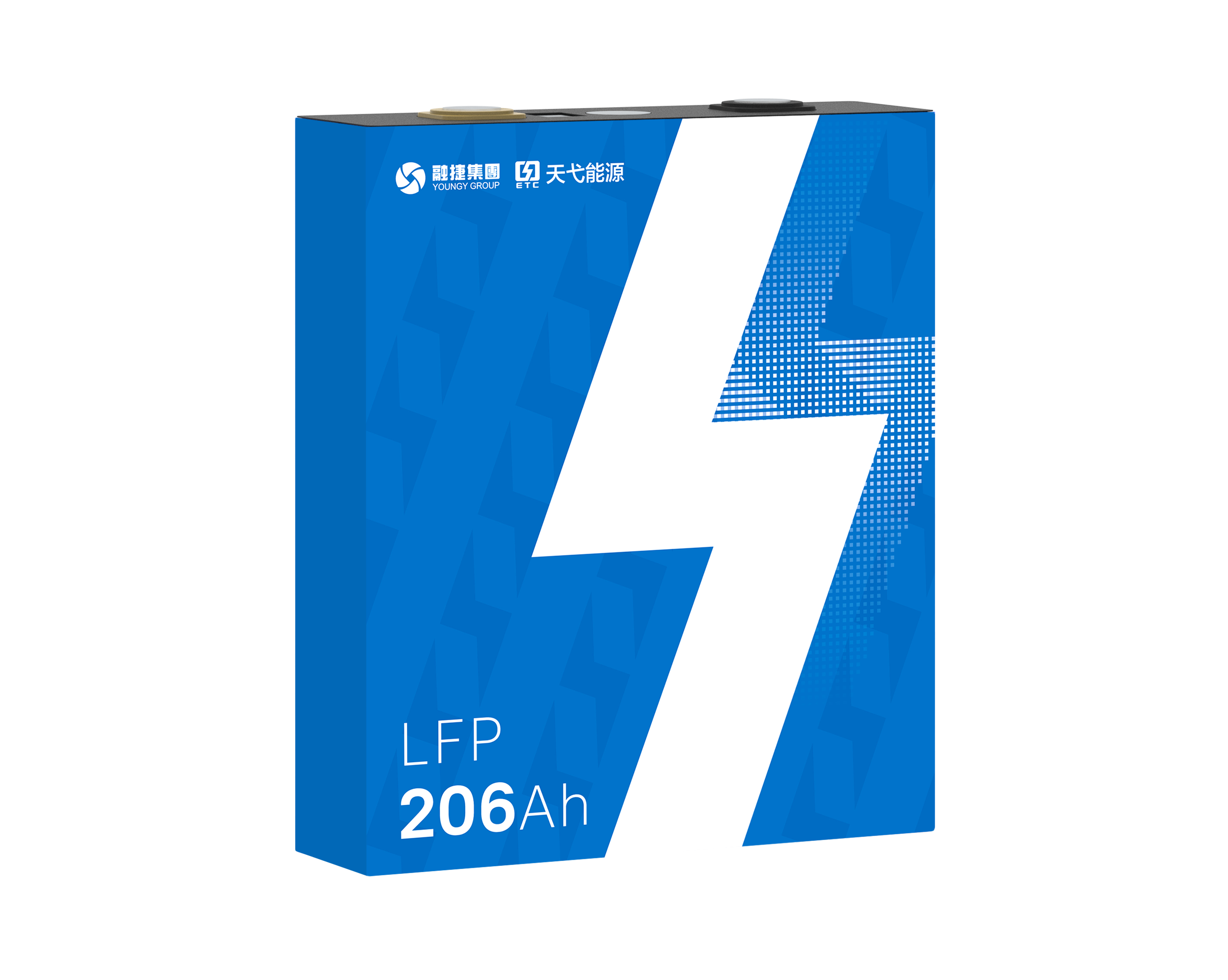

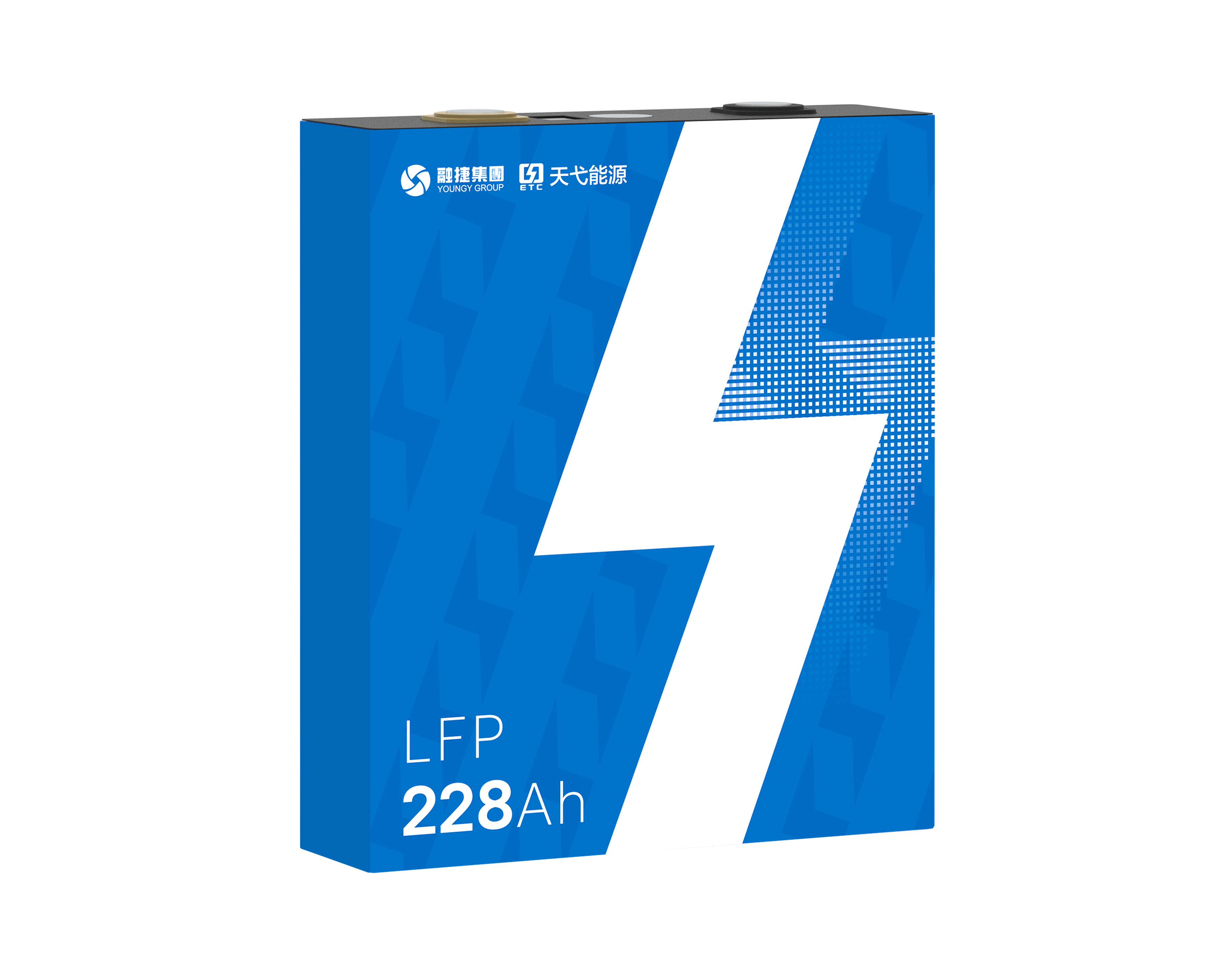

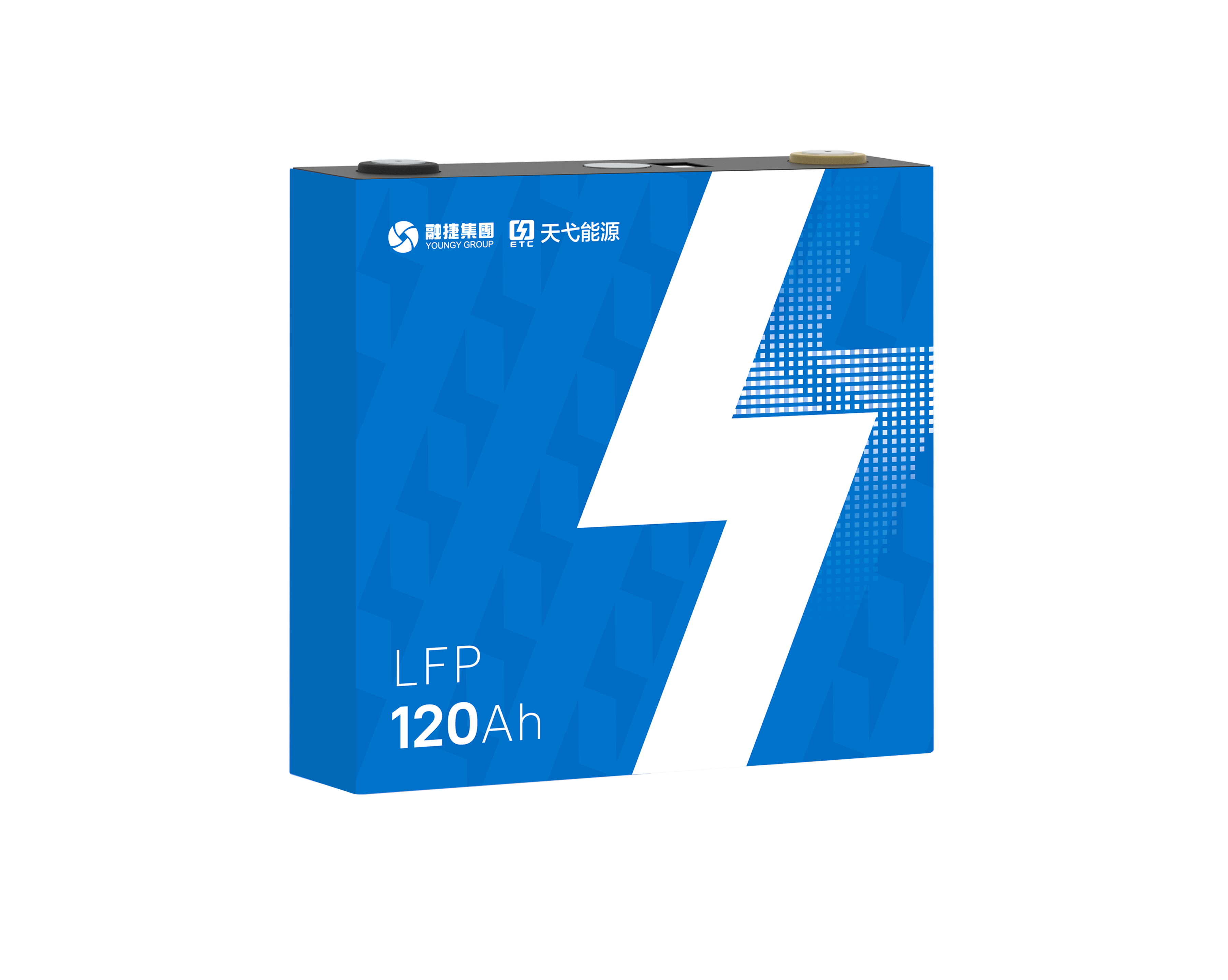

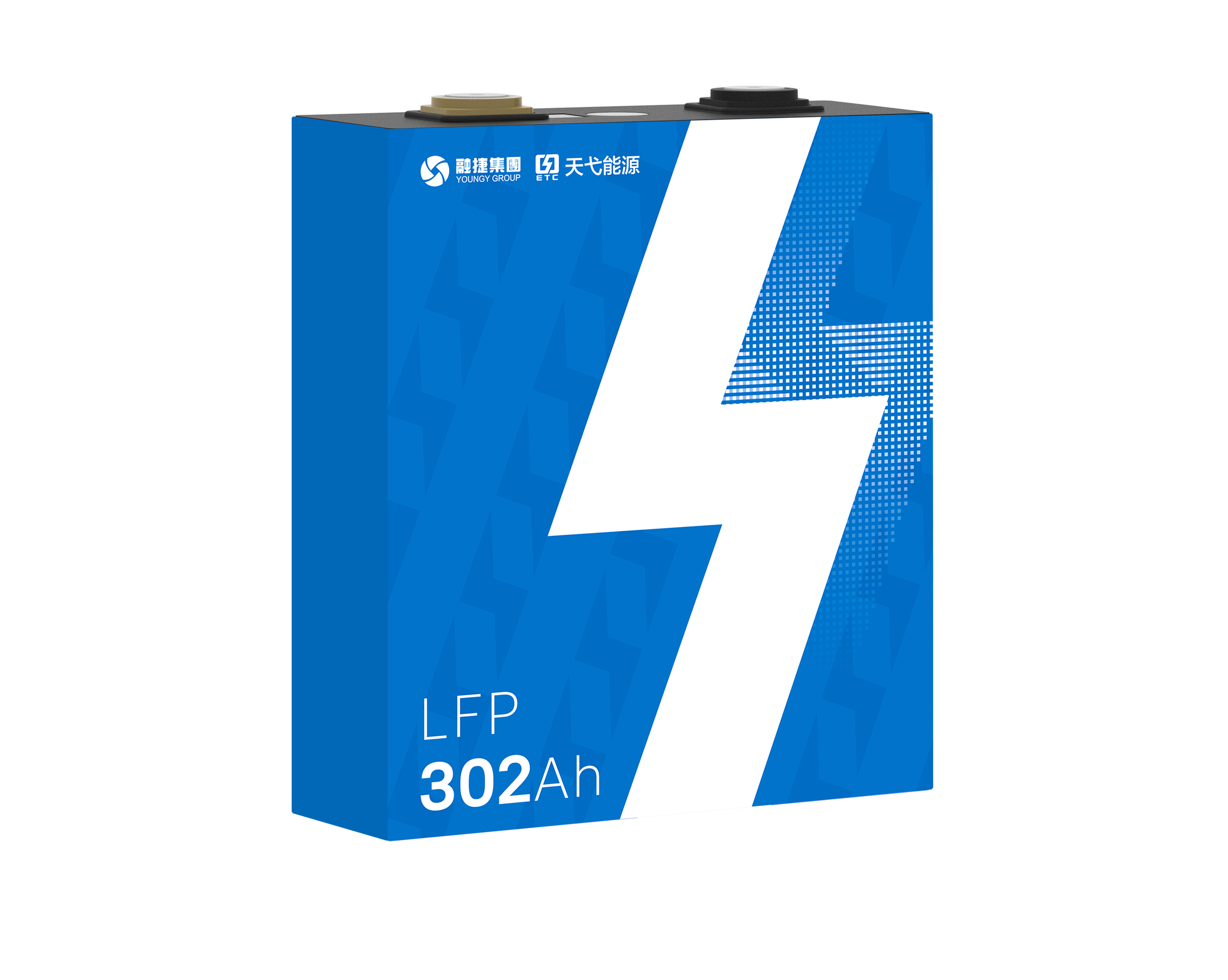

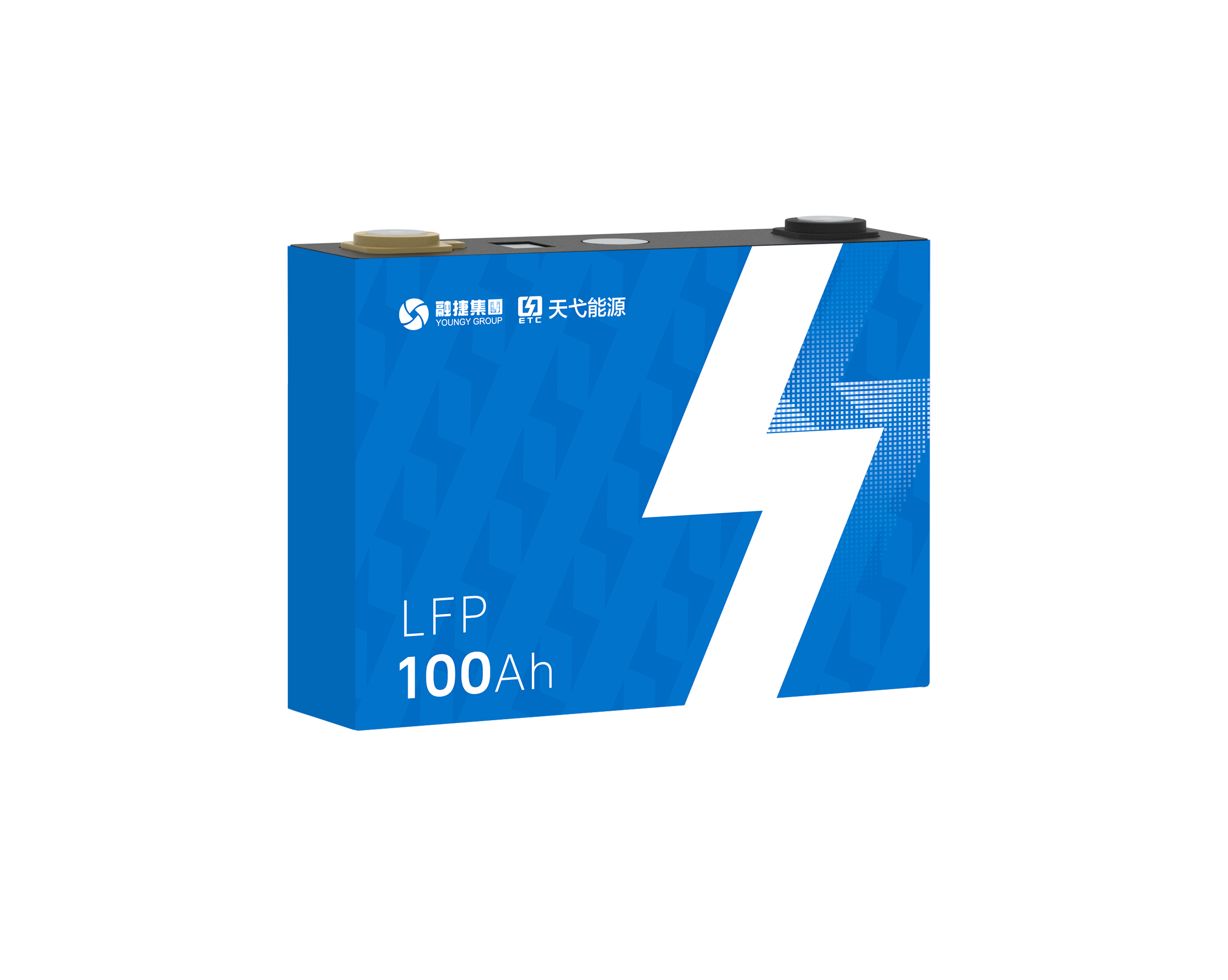

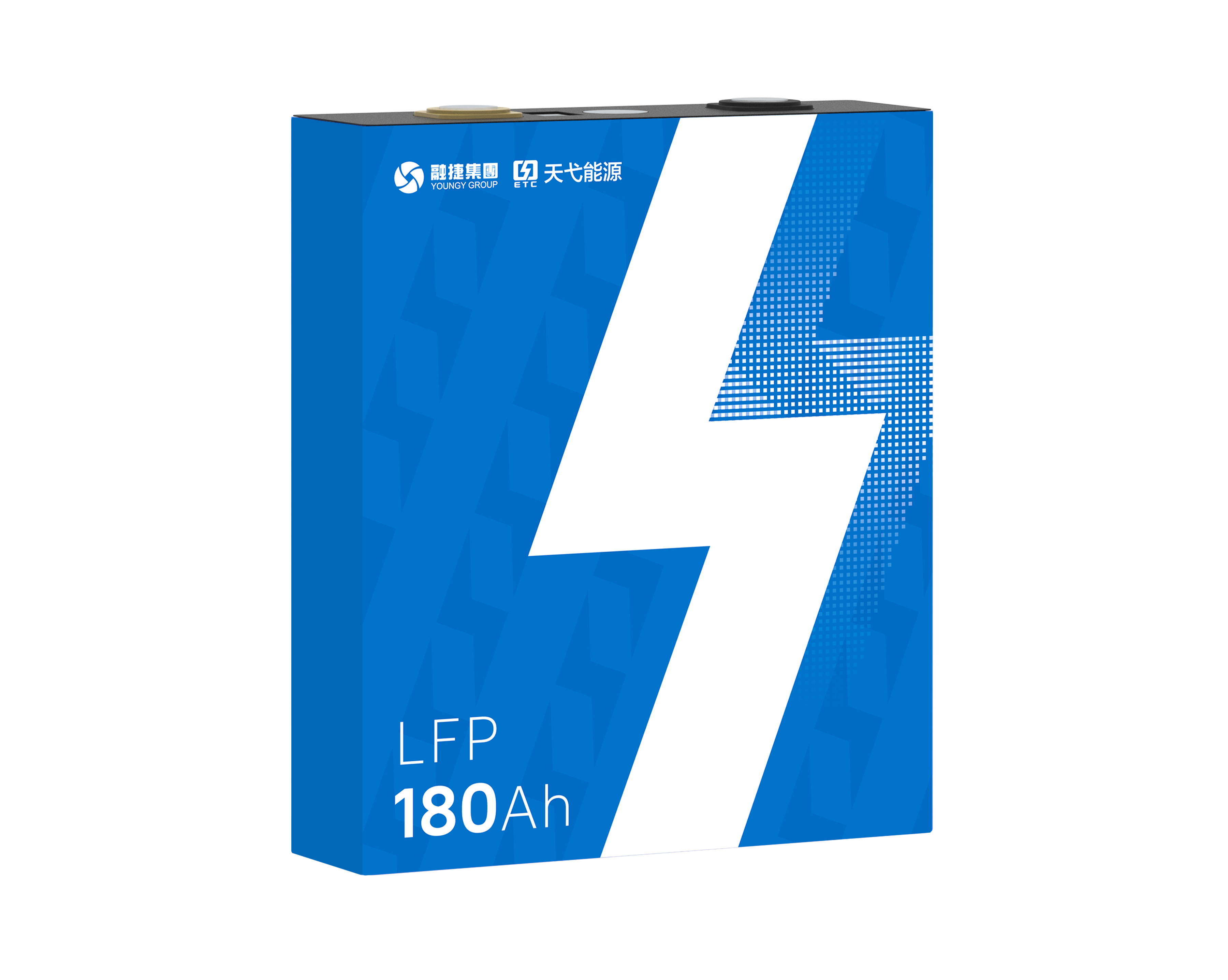

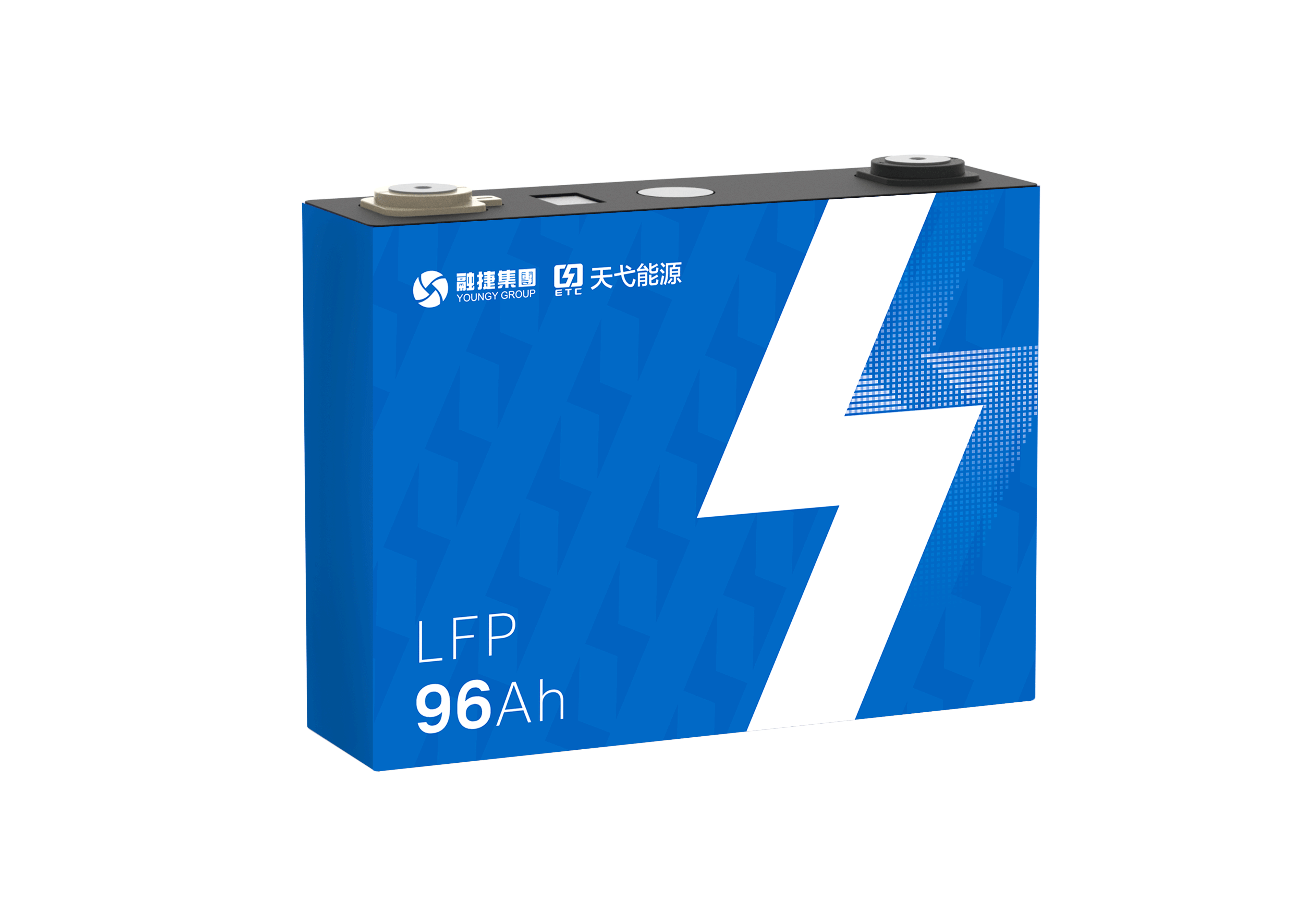

EV Cell

Energy Density136Wh/kg

Cycle Life5000cycles

Dimension48*173*133mm

Charge/Discharge Rate3C/3C

EV Cell

Energy Density152Wh/kg

Cycle Life3000cycles

Dimension48*173*133mm

Charge/Discharge Rate1C/1C

EV Cell

Energy Density150Wh/kg

Cycle Life1500cycles

Dimension48*173*170mm

Charge/Discharge Rate1C/1C

EV Cell

Energy Density154Wh/kg

Cycle Life1500cycles

Dimension54*173*207mm

Charge/Discharge Rate1C/1C

EV Cell

Energy Density165Wh/kg

Cycle Life5000Cycles

Dimension54*173*207mm

Charge/Discharge Rate1C/1C

EV Cell

Energy Density158Wh/kg

Cycle Life5000cycles

Dimension54*173*207mm

Charge/Discharge Rate2C/2C

EV Cell

Energy Density175Wh/kg

Cycle Life5000Cycles

Dimension54*173*207mm

Charge/Discharge Rate1C/1C

EV Cell

Energy Density167Wh/kg

Cycle Life5000Cycles

Dimension54*173*207mm

Charge/Discharge Rate2C/1C

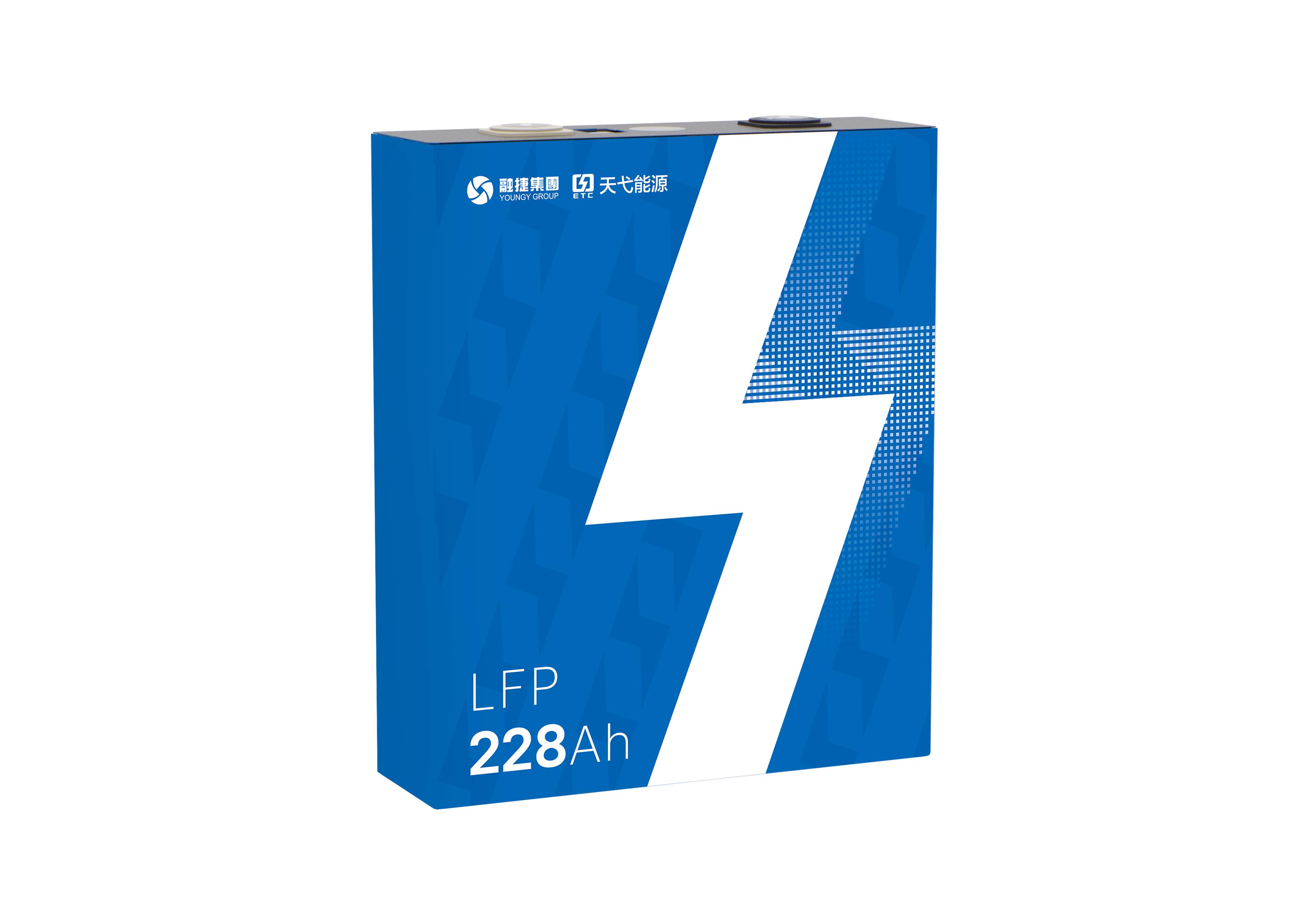

EV Cell

Energy Density176Wh/kg

Cycle Life6000cycles

Dimension71*173*207mm

Charge/Discharge Rate1C/1C

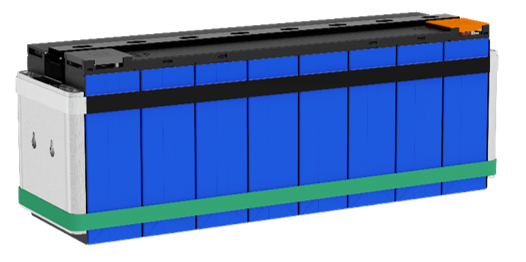

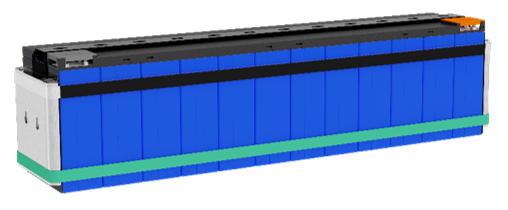

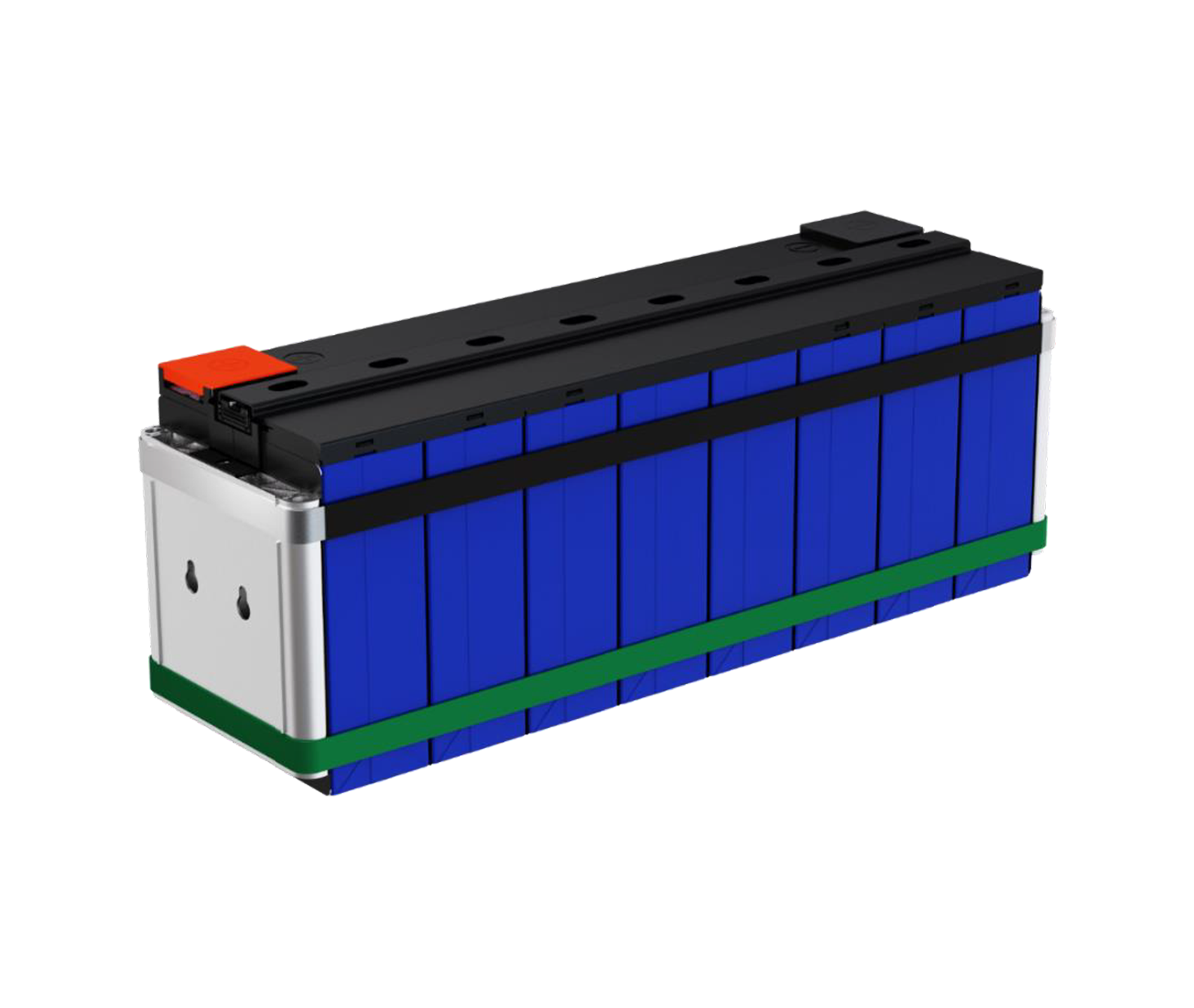

EV Module

5.306kWh-206Ah1C

Configuration1P8S

Nominal Voltage25.76V

Charge/Discharge Rate1C/1C

EV Module

5.306kWh-206Ah2C

Configuration1P8S

Nominal Voltage25.76V

Charge/Discharge Rate2C/2C

EV Module

Configuration1P8S

Nominal Voltage25.76V

Charge/Discharge Rate1C/1C

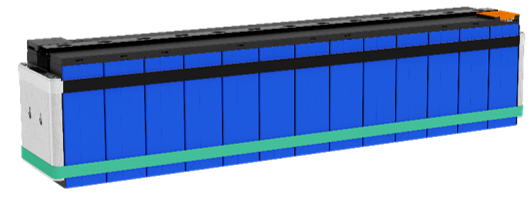

EV Module

7.960kWh-206Ah1C

Configuration1P12S

Nominal Voltage38.64V

Charge/Discharge Rate1C/1C

EV Module

7.960 kWh-206Ah2C

Configuration1P12S

Nominal Voltage38.64 V

Energy7.960 kWh

Charge/Discharge Rate2C/2C

EV Module

Configuration1P12S

Nominal Voltage38.64V

Charge/Discharge Rate1C/1C

EV Module

10.613 kWh-206Ah1C

Configuration1P16S

Nominal Voltage51.52 V

Energy10.613 kWh

Charge/Discharge Rate1C/1C

EV Module

10.613 kWh-206Ah2C

Configuration1P16S

Nominal Voltage51.52 V

Energy10.613 kWh

Charge/Discharge Rate2C/2C

EV Module

11.746kWh-228Ah

Configuration1P16S

Nominal Voltage51.52V

Energy11.746kWh

Charge/Discharge Rate1C/1C

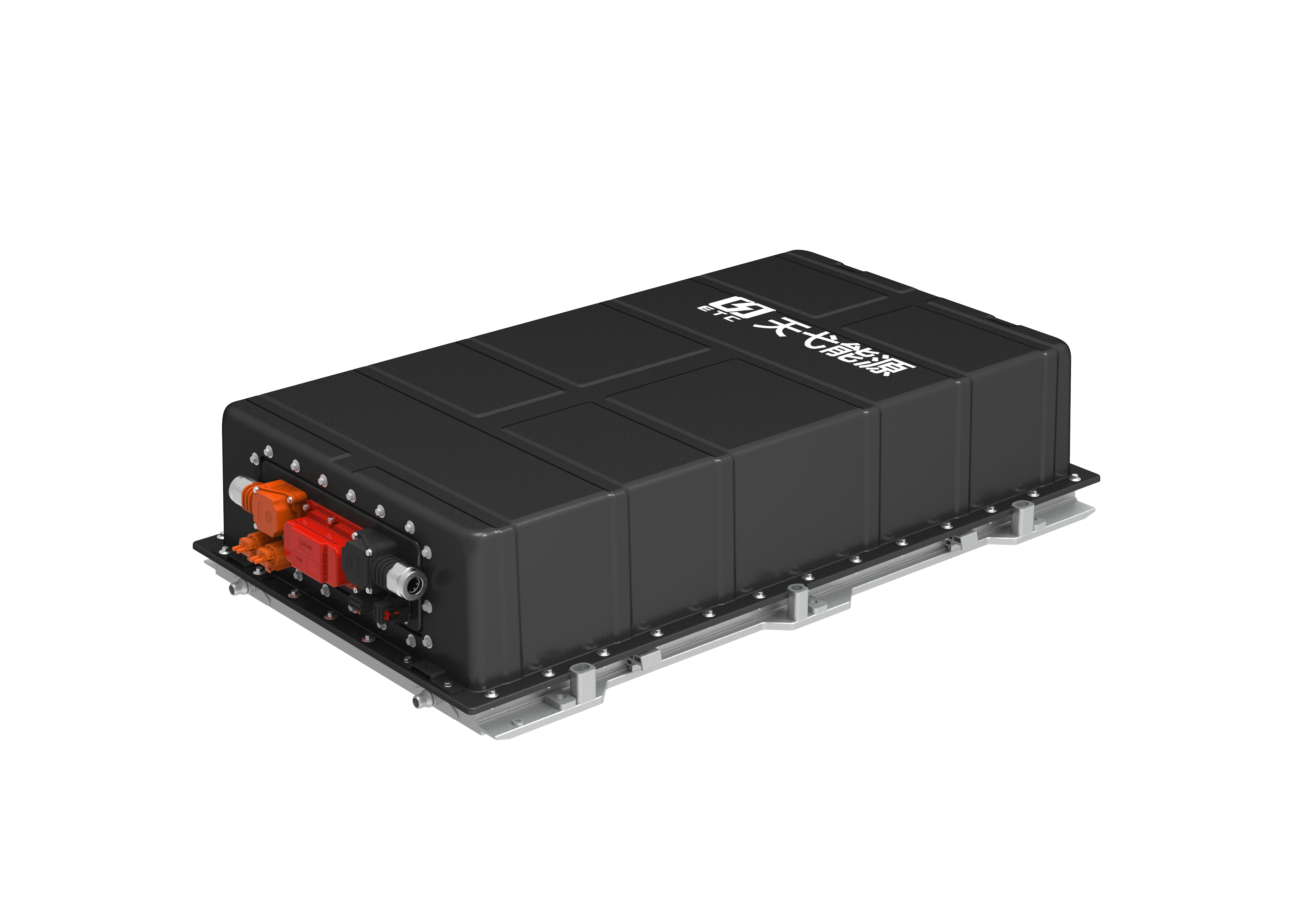

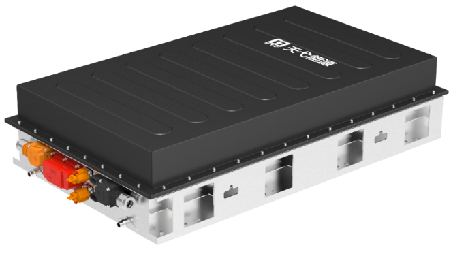

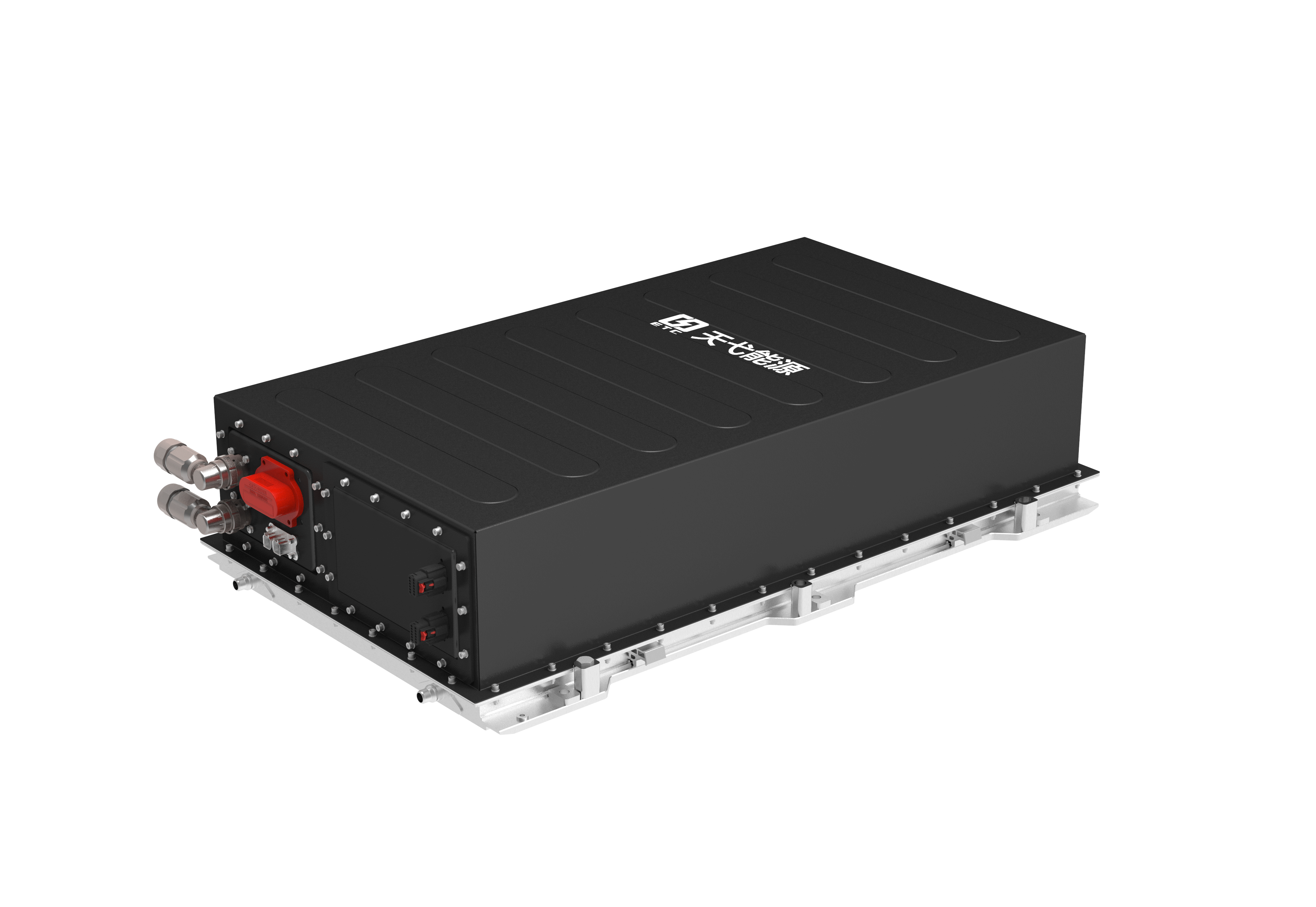

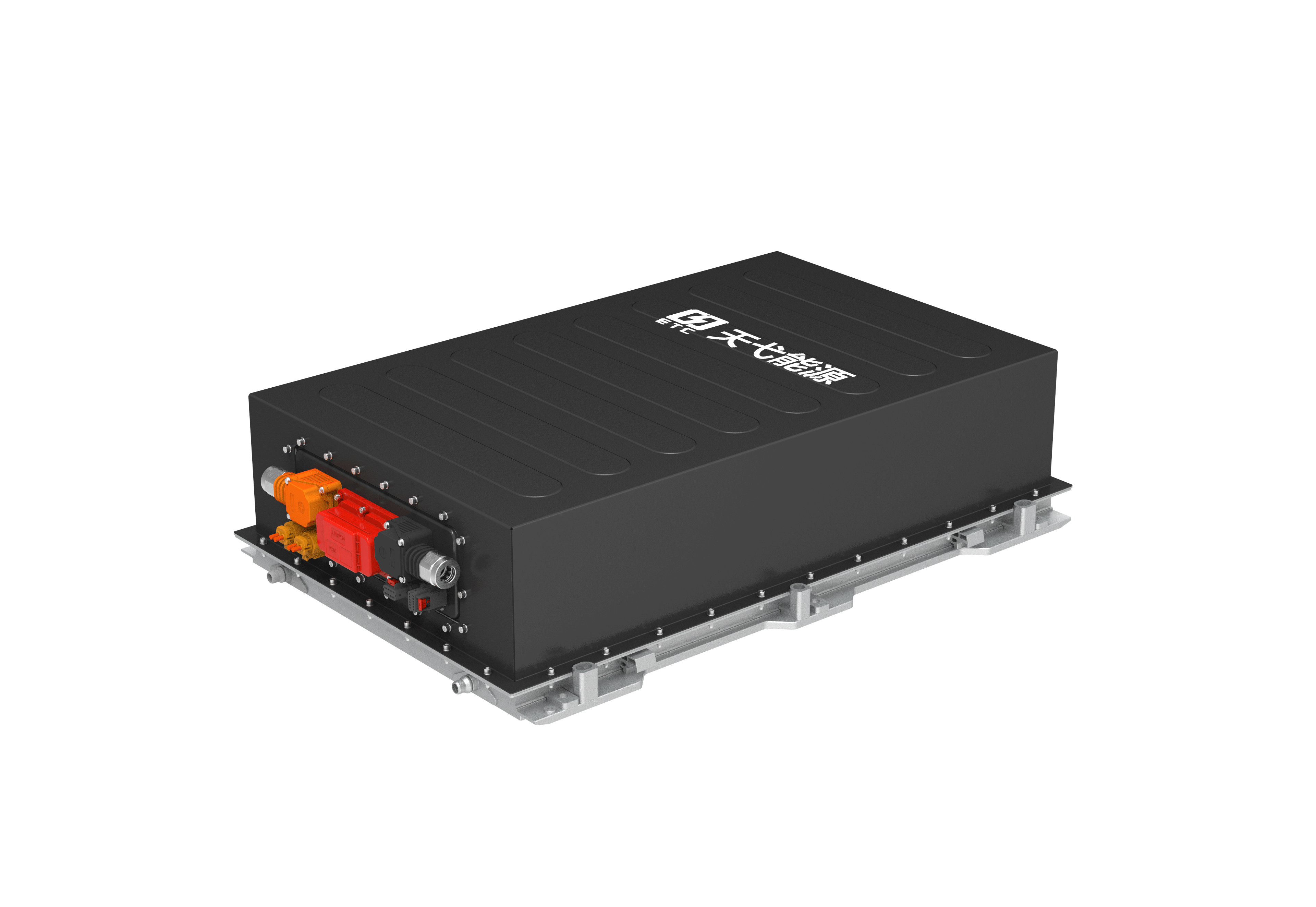

EV Pack

16.589kWh-96Ah3C

Configuration1P54S

Energy16.589kWh

Nominal Voltage172.80V

Dimension1090*644*160mm

EV Pack

28.632kWh-228Ah1C

Configuration1P39S

Energy28.632kWh

Nominal Voltage125.58V

Dimension950*630*240mm

EV Pack

35.239kWh-228Ah1C

Configuration1P48S

Energy35.239kWh

Nominal Voltage154.56V

Dimension1060*630*240mm

EV Pack

35.239kWh-228Ah1C

Configuration1P48S

Energy35.239kWh

Nominal Voltage154.56V

Dimension1090*644*245mm

EV Pack

35.239kWh-228Ah2C

Configuration1P48S

Energy35.239kWh

Nominal Voltage154.56V

Dimension1060*630*245mm

EV Pack

29.173kWh-302Ah0.8C

Configuration1P30S

Energy29.173kWh

Nominal Voltage96.6V

Dimension950*630*240mm

EV Pack

35.0078kWh-302Ah0.8C

Configuration1P36S

Energy35.0078kWh

Nominal Voltage115.92V

Dimension1090*644*245mm

EV Pack

35.0078kWh-302Ah0.8C

Configuration1P36S

Energy35.0078kWh

Nominal Voltage115.92V

Dimension1060*630*240mm

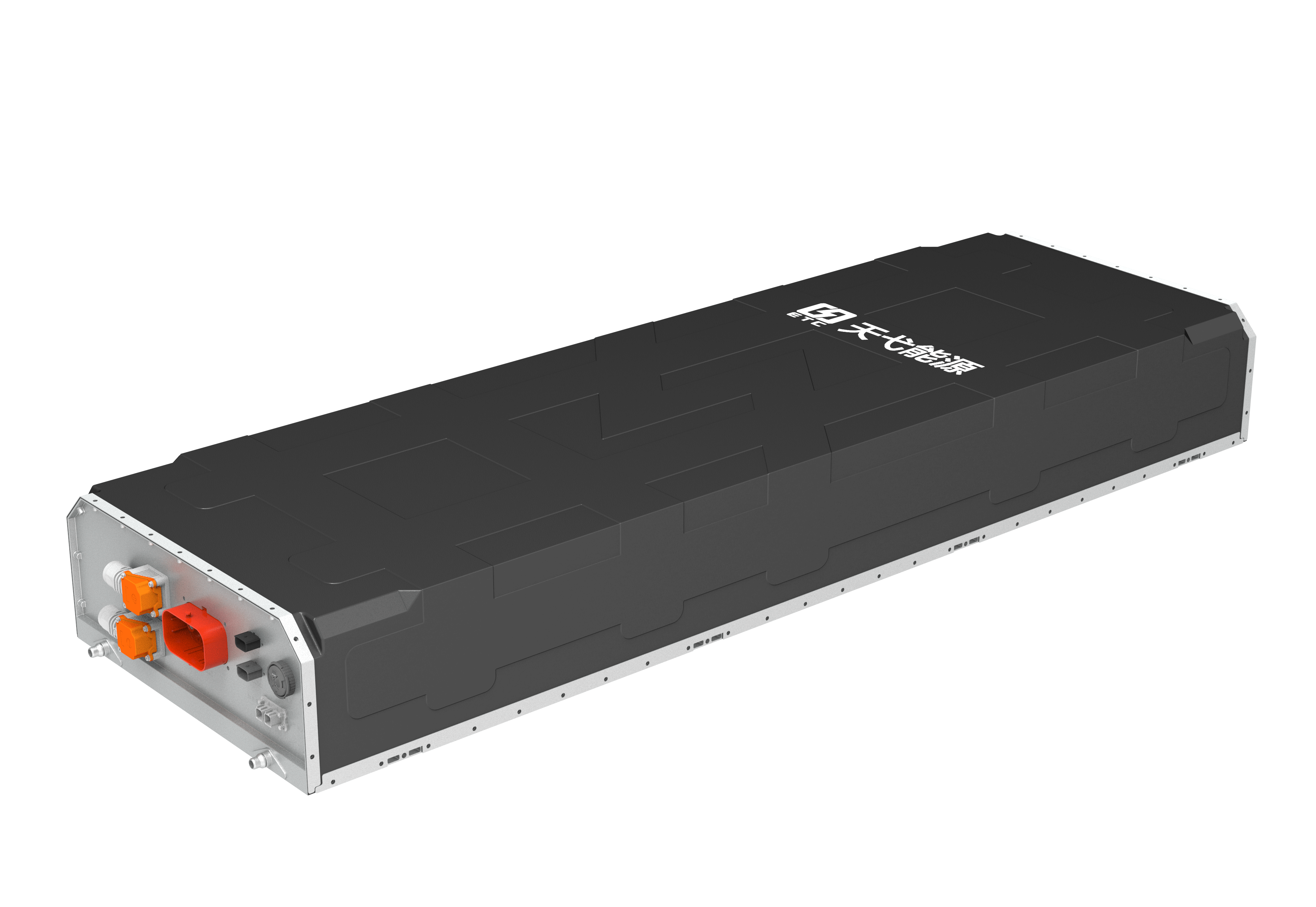

EV Pack

87.4752kWh-268Ah1C

Configuration1P102S

Energy87.4752kWh

Nominal Voltage326.4V

Dimension2056*640*250mm

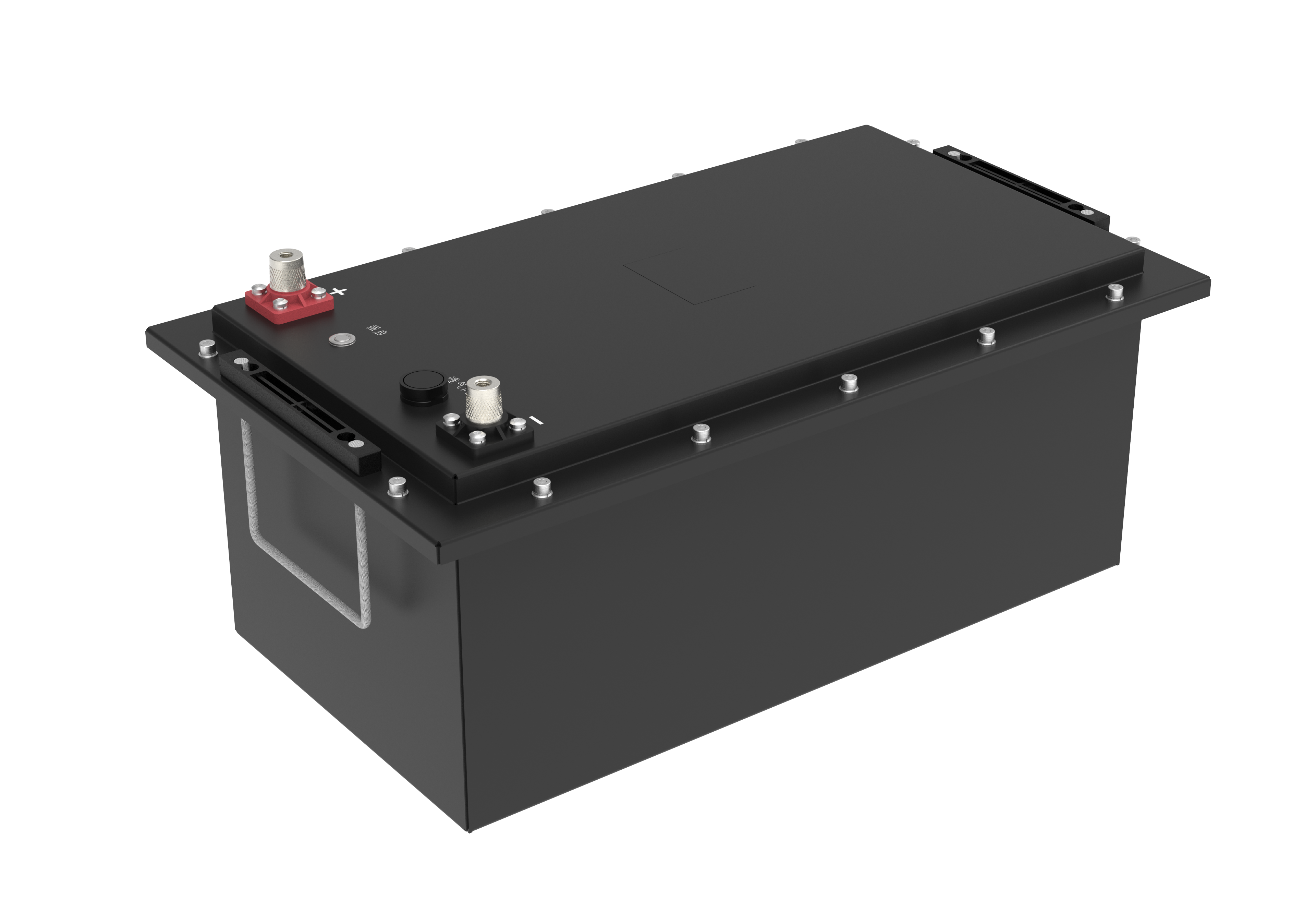

Start-Stop Battery

Start-Stop Battery

Start-Stop Battery

24V-135Ah

24V-150Ah

24V-165Ah

More

EV battery module can be tailor-made,
please contact us for details！

EV battery pack can be tailor-made,
please contact us for details！
